Description
SYSTEM PERFORMANCE CRITERIA
System performance criteria are the most important to consider because they represent the performance in a typical installation. Raised access floor only criteria such as concentrated load is often used to specify floor systems however, the test is not representative of an actual installation because it is performed with the raised access floor testing blocks, not actual understructure.
| System Performance Criteria | ||||||
| System Type | Static Loads | Rolling Loads | ||||
| Panel | Panel Size | Concentrated Load |
Safety Factor (min.2.0) |
Ultimated load | 10 Passes | 10,000 Passes |
| FS700 | 500x500x28mm | 318kg /700lbs | Pass | 636kg /1400lbs | 275kg 600lbs |
181kg 400lbs |
| FS800 | 500x500x28mm | 368kg/800lbs | Pass | 736kg/1600lbs | 318kg 700lbs |
275kg 600lbs |
| FS1000 | 500x500x28mm | 454kg/1000lbs | Pass | 909kg/2000lbs | 368kg 800lbs |
318kg 700lbs |
*A tests are performed using CISCA’s Recommend Test Procedures for Access Floors with the exception of Design Load
1. Raised access floor design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. Design load is determined by taking the lesser value of ultimate load divided by two or the point at which permanent damage begins to occur (yield point).
2. Raosed Access floor safety factor is the multiple of Design load to the Ultimate Load. International standards and Dawn Modular Floor recommend’ a minium of 2.
2. Raosed Access floor safety factor is the multiple of Design load to the Ultimate Load. International standards and Dawn Modular Floor recommend’ a minium of 2.
RAISED ACCESS FLOORING

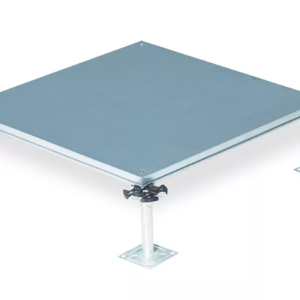

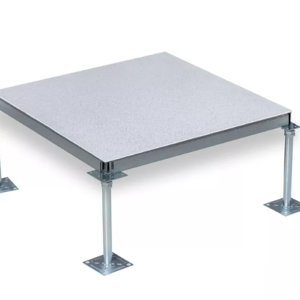

UNDERSTRUCTURE OPTIONS
RAISED ACCESS FLOORING
INSTALLATION
The finished raised access floor wil be rigid, free from vibration and rocking panels within a 3mm level over the entire space. Panels will be accurately cut to fit around all permanent features. All whole panels will be completely interchangeable allowing for any future changes. The raised access foor will maintain these origina conditions when sufficient panels have been removed for normal underfloor access.
RAISED ACCESS FLOORING
BENEFITS
● Easy Installation: The interlocking panels make installation easy and quick, saving both time and money.
● Maintenance: This flooring requires minimal maintenance, making it a cost-effective and practical solution.
● Accessibility: The raised design of the flooring allows for easy access to cabling, electrical components, and other infrastructure, simplifying maintenance and upgrades.
● Fire Resistance: OA500 steel raised access flooring is resistant to fire, making it a safe option for many commercial buildings.
● Sustainability: The steel used in this flooring is recyclable, making it an eco-friendly option for those who prioritize sustainability.
● Maintenance: This flooring requires minimal maintenance, making it a cost-effective and practical solution.
● Accessibility: The raised design of the flooring allows for easy access to cabling, electrical components, and other infrastructure, simplifying maintenance and upgrades.
● Fire Resistance: OA500 steel raised access flooring is resistant to fire, making it a safe option for many commercial buildings.
● Sustainability: The steel used in this flooring is recyclable, making it an eco-friendly option for those who prioritize sustainability.
