Description
FINISH OPTIONS
Tile factory laminated
1.2mm HPL
Pattern 45° Routed HPL C-Trim Edge Trim integral trim
1.5mm HPL
Pattern 45° Routed HPL C-Trim Edge Trim integral trim
Pattern 45° Routed HPL C-Trim Edge Trim integral trim
3.0mm HPL
Pattern 45° Routed HPL C-Trim Edge Trim integral trim
For additional laminate options, Contact our sales team.
SYSTEM PERFORMANCE CRITERIA
System performance criteria are the most important to consider because they represent the performance in a typical installation. Panel only criteria such as concentrated load is often used to specify floor systems however, the test is not representative of an actual installation because it is performed with the panel testing blocks, not actual understructure.
| System Performance Criteria | ||||||
| System Type | Static Loads | Rolling Loads | ||||
| Panel | Panel Size | Concentrated Load |
Safety Factor (min.2.0) |
Ultimated load | 10 Passes | 10,000 Passes |
| FS800 | 600x600x35mm 610x610x35mm |
368kg/800lbs | Pass | 736kg/1600lbs | 318kg 700lbs |
275kg 600lbs |
| FS1000 | 600x600x35mm 610x610x35mm |
454kg/1000lbs | Pass | 909kg/2000lbs | 368kg 800lbs |
318kg 700lbs |
| FS1250 | 600x600x35mm 610x610x35mm |
568kg/1250lbs | Pass | 1136kg/2500lbs | 454kg 1000lbs |
368kg 800lbs |
| FS1500 | 600x600x35mm 610x610x35mm |
681kg/1500lbs | Pass | 1363kg/3000lbs | 568kg 1250lbs |
454kg 1000lbs |
| FS2000 | 600x600x35mm 610x610x35mm |
909kg/2000lbs | Pass | 1818kg/4000lbs | 681kg 1500lbs |
568kg 1250lbs |
| FS2500 | 600x600x35mm 610x610x35mm |
1136kg/2500lbs | Pass | 2272kg/5000lbs | 909kg 2000lbs |
681kg 1500lbs |
| FS3000 | 600x600x35mm 610x610x35mm |
1363kg/3000lbs | Pass | 2726kg/6000lbs | 1136kg 2500lbs |
909kg 2000lbs |
*A tests are performed using CISCA’s Recommend Test Procedures for Access Floors with the exception of Design Load
1. Design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. Design load is determined by taking the lesser value of ultimate load divided by two or the point at which permanent damage begins to occur (yield point).
2. Safety factor is the multiple of Design load to the Ultimate Load. International standards and Dawn Modular Floor recommend’ a minium of 2.
2. Safety factor is the multiple of Design load to the Ultimate Load. International standards and Dawn Modular Floor recommend’ a minium of 2.

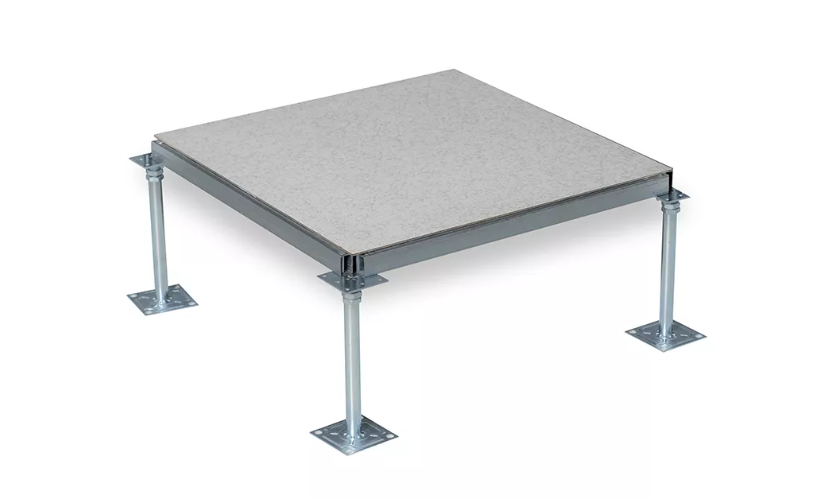

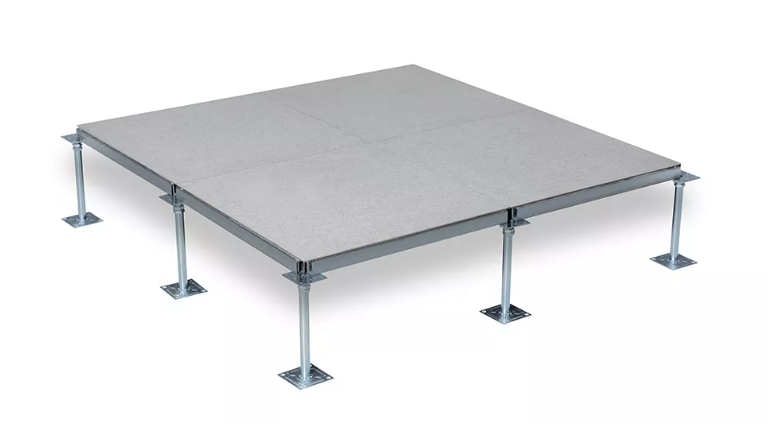

UNDERSTRUCTURE OPTIONS
-
Heavy Duty FH Pedestal
(OD32x1.5mm tube) -
Extra Heavy Duty FH Pedestal
(OD45x1.5mm tube) -
Seismic FH Pedestal
(OD60x1.5mm tube) -
Standard Stringer
(1.0mm / 1.8mm thickness)
INSTALLATION
The finished access floor wil be rigid, free from vibration and rocking panels within a 3mm level over the entire space. Panels will be accurately cut to fit around all permanent features. All whole panels will be completely interchangeable allowing for any future changes. The access foor will maintain these origina conditions when sufficient panels have been removed for normal underfloor access.
ADVANTAGES
● Electrostatic Discharge Protection: Anti-static raised access flooring prevents the buildup of static electricity, which can damage sensitive electronic equipment in data centers. This helps to protect the data center’s equipment from electrostatic discharge (ESD).
● Cable Management: Raised access flooring provides ample space for cable management, helping to keep cables organized and easily accessible for maintenance and upgrades.
● Customizable Design: Anti-static raised access flooring is available in a range of finishes and colors, allowing for customizable design options that can complement the aesthetics of the data center.
● Durability: Anti-static raised access flooring is made from high-quality materials, providing excellent durability and long-term performance.
● Cable Management: Raised access flooring provides ample space for cable management, helping to keep cables organized and easily accessible for maintenance and upgrades.
● Customizable Design: Anti-static raised access flooring is available in a range of finishes and colors, allowing for customizable design options that can complement the aesthetics of the data center.
● Durability: Anti-static raised access flooring is made from high-quality materials, providing excellent durability and long-term performance.
● Easy Installation: Raised access flooring is easy to install and can be customized to fit the unique needs of the data center.
● Fire Resistance: Anti-static raised access flooring is often made from fire-resistant materials, providing an additional layer of safety and protection for the data center.
● Sound Absorption: Raised access flooring can help to reduce noise levels in the data center, creating a quieter and more comfortable working environment for technicians and other staff.
